Automatic weighing and packing line CZ-1
CZ-1
Details&Quality of the Equipment

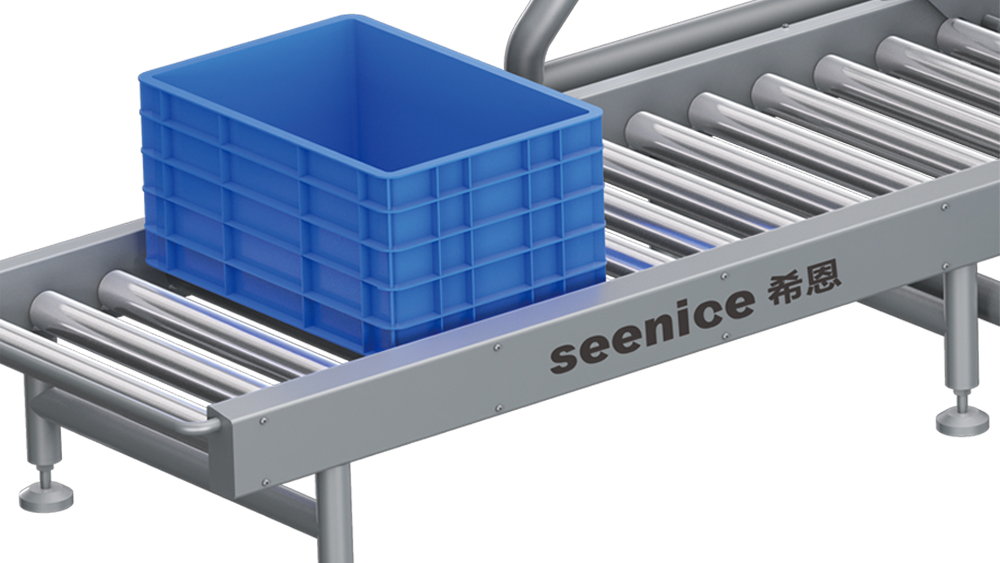

Automatic basket feeding area

  • Automatic basket feeding area

    Equipped with 304 stainless steel roller motor, excellent performance, driving each material basket to the loading area, which makes each production link closely connected, and improving production efficiency.

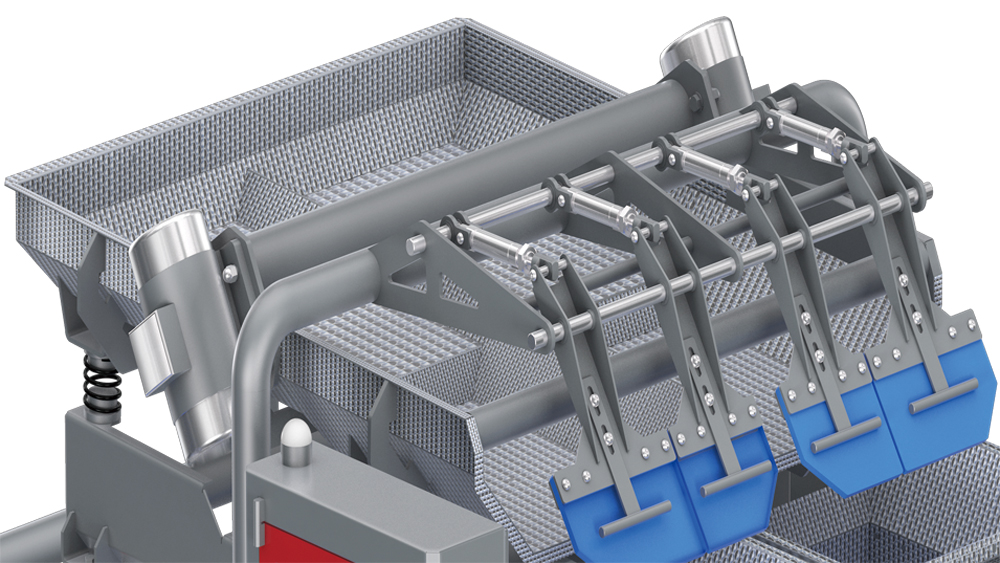

  • Vibration uniform material distribution

    Utilizing vibration to convey materials, precise and uniform material distribution, equipped double material blocking plates, to achieve more accurate weighing. And It made of stainless steel drip plates to prevent material stick together.

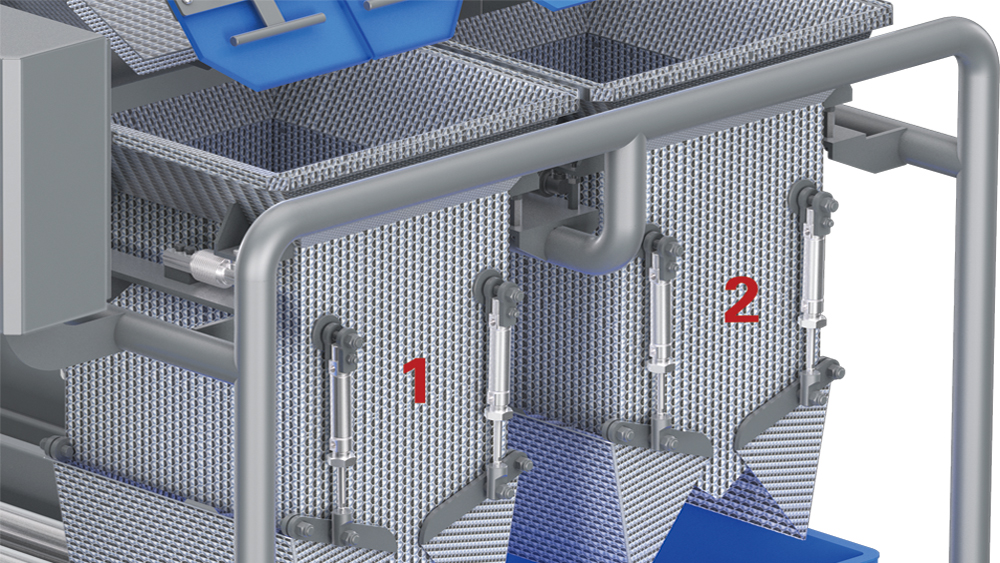

  • Dual-bin precise weighing

    The weighing automatic area is equipped with a dual-bin structure, equipped with 8 pressure sensors, which can set a precise weighing range of 5 - 20kg, with accuracy of ±0.5% FS.

  • Dual-basket automatic material receiving

    The system includes a dual-basket automatic receiving mechanism, with independent control for each basket. It ensures fast and accurate weighing, tightly integrated with the packaging process, achieving an efficient production capacity of 2 tons.

Overview of the equipment

· Quantitative weighing and packaging of vegetables such as green vegetables, Chinese cabbage, shredded potatoes, etc. after cleaning, cutting, and drying.


· Adopting dual channel weighing packaging to achieve high production capacity.


· It consists of a silo, lifting, vibration, weighing, automatic feeding, and control unit.


· Equipped with a weighing pressure sensor, the weighing range can be set from 5-20kg.

Technical parameter
ModelCZ-1
Dimension4265×3395×1900mm
Processing capacity 2000kg/h
Weight978kg
Power0.55kW
  • ModelCZ-1
  • Dimension4265×3395×1900mm
  • Processing capacity 2000kg/h
  • Weight978kg
  • Power0.55kW
