Fully automatic continuous spin dryer TC-2
TC-2
Details&Quality of the Equipment

Waterdrop board

  • Waterdrop board

    The material conveying edge adopts a 304 stainless steel concave convex water droplet board design, which ensures non adhesion during transportation and prevents oxidation and loss of vegetables. It is clean and hygienic without dead corners.

  • Air spring

    Adopting German brand air springs, utilizing gas compressibility to achieve its elastic effect, the vibration is relatively easy to control compared to the spring, and the spin drying bucket is stable and durable.

  • Shake off the host

    The spin drying host is equipped with German Sew brand motors, German Festo pneumatic control components, and the electric control box adopts German Weitu constant temperature control.

  • Buffer conveying

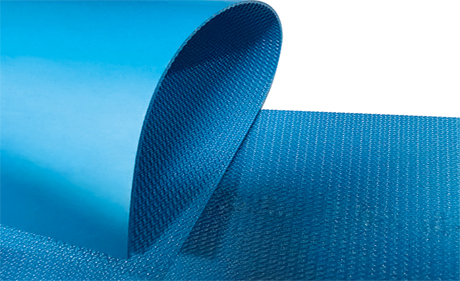

    Adopting the German Siglin brand PU material conveyor belt, blue food grade, anti flash, water-resistant, and non fading.

  • Conveyor belt

    Made of PU material, it meets the blue food grade standard to prevent burrs. The conveyor belt is resistant to hydrolysis and will not fade after long-term use.

Overview of the equipment

· For dehydrated vegetables after cleaning, suitable for cut materials such as salads, Chinese cabbage, green vegetables, shredded potatoes, etc.


· The material is lifted to the buffer conveyor through an inclined conveyor, and the buffer conveyor belt quickly transports it to the spin drying bucket, equipped with movable casters.


· Adopting SUS304 stainless steel waterproof electric drum drive, it operates reliably, is easy to maintain, and is easy to clean and maintain.


· Characteristic cascade control (from feed release to discharge) with adjustable spin drying speed.


· Smooth conveyor belt with satin strap and hinged scraper for quick product release.


· Composed of feeding conveyor belt, spin dryer, discharging conveyor belt, and control unit.

Technical parameter
ModelTC-2
Dimension8050x2112x2855mm
Rotary speed20~700r/min
Weight of the feeding conveyor550kg
Weight of discharge conveyorWeight of discharge conveyor270kg
Capacity8300L/h
Weight1720kg
Power13.05kW
  • ModelTC-2
  • Dimension8050x2112x2855mm
  • Rotary speed20~700r/min
  • Weight of the feeding conveyor550kg
  • Weight of discharge conveyorWeight of discharge conveyor270kg
  • Capacity8300L/h
  • Weight1720kg
  • Power13.05kW
