Three layer selection conveyor PTX-10
PTX-10
Details&Quality of the Equipment

Three layer conveyor

  • Three layer conveyor

    The upper layer is used for conveying to the vegetable slicer, while the second layer is for conveying raw materials. Both sides are equipped with workstations for removing roots and leaves, as well as workstations for separating and selecting the petals.

  • Quick release belt

    Simply turn the handle to release the conveyor belt in just 1 second, enabling efficient cleaning and a hygienic, dead-angle-free environment.

  • Drum motor

    Equipped with a 304 stainless steel roller motor, it boasts superior performance, durability, safety, and energy efficiency, facilitating efficient production.

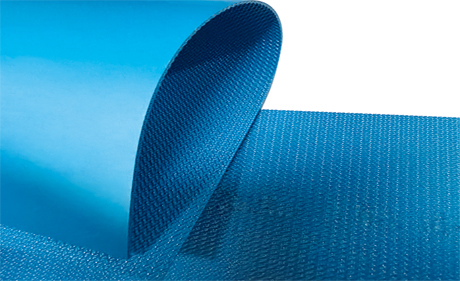

  • Conveyor belt

    Made of PU material, compliant with the blue food-grade standard, oil-resistant, water-resistant, and hygienic with no dead corners.

Overview of the equipment

· Used for selecting and trimming leafy vegetables such as Chinese cabbage and celery, and transporting them to designated areas.


· Adopting a folding belt tensioning method, the belt can be quickly disassembled and assembled without any tools, making it convenient for cleaning and equipment maintenance.


· Adopting SUS304 waterproof electric drum drive, it operates reliably, is easy to maintain, and is easy to clean and maintain.


· The conveyor belt is equipped with guide strips to prevent deviation and side-slip, ensuring safety, reliability, and durability.


Technical parameter
ModelPTX-10
Dimension5014x1462x1441mm
Capacity2000kg/h
Weight630kg
Power1.3kW
  • ModelPTX-10
  • Dimension5014x1462x1441mm
  • Capacity2000kg/h
  • Weight630kg
  • Power1.3kW
