Raised Conveying and Sorting Machine PTX-4G
PTX-4G
Details&Quality of the Equipment

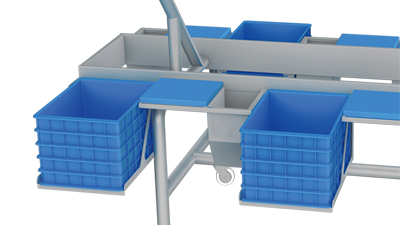

Workstation

  • Workstation

    Equipped with raw material storage bins, workboards, and waste collection bins on both sides, effectively reducing labor intensity and greatly improving labor efficiency.

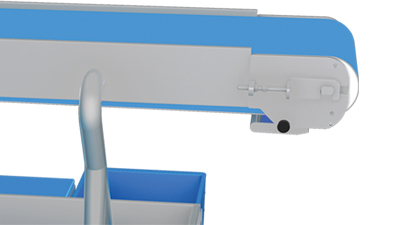

  • Raised conveying

    After sorting and trimming, materials are accurately conveyed to the washing machine or vegetable cutter via the lifting mechanism, ensuring efficient connection with subsequent processes.

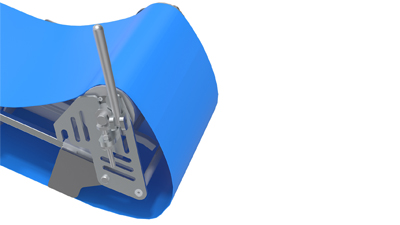

  • Quick belt release

    Simply turn the handle to release the conveyor belt in just 1 second, enabling efficient cleaning and a hygienic, dead-angle-free environment.

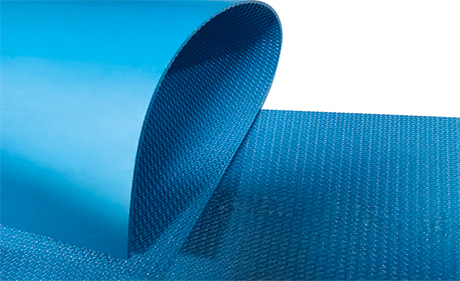

  • Conveyor belt

    Made of PU material, compliant with the blue food-grade standard, oil-resistant, water-resistant, and hygienic with no dead corners.

Overview of the equipment

· Driven by SUS304 electric drum motor, ensuring reliable operation, easy maintenance, and convenient cleaning and upkeep.


· Adopts a cantilever support structure and flip-type side panels for easy cleaning and maintenance.


· The conveyor belt is equipped with guide strips to prevent deviation and side-slip, ensuring safety, reliability, and durability.


Technical parameter
ModelPTX-4G
Dimension2260x1590x1440mm
Capacity2000kg/h
Weight227kg
Power0.8kW
  • ModelPTX-4G
  • Dimension2260x1590x1440mm
  • Capacity2000kg/h
  • Weight227kg
  • Power0.8kW
