Double-Layer Conveying and Sorting Machine PTX-6S
PTX-6S
Details&Quality of the Equipment

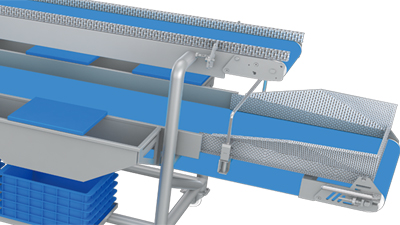

Double-layer conveying

  • Double-layer conveying

    The upper layer conveys materials to the washing machine or vegetable cutter; the lower layer conveys raw materials, with root/tip removal workstations and sorting workstations on both sides.

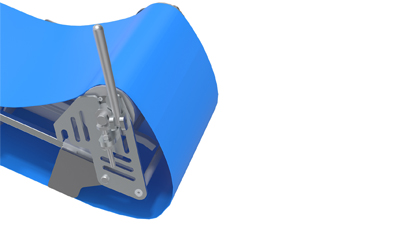

  • Quick belt release

    Simply turn the handle to release the conveyor belt in just 1 second, enabling efficient cleaning and a hygienic, dead-angle-free environment.

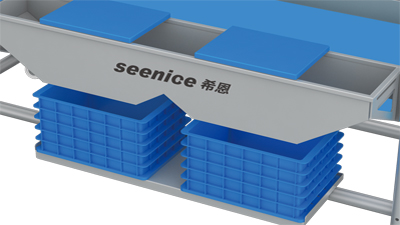

  • Collection bin

    Equipped with workboards and waste collection bins for centralized waste disposal, significantly improving labor efficiency.

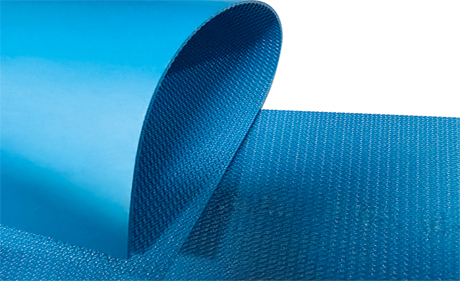

  • Conveyor belt

    Made of PU material, compliant with the blue food-grade standard, oil-resistant, water-resistant, and hygienic with no dead corners.

Overview of the equipment

· Driven by SUS304 electric drum motor, ensuring reliable operation, easy maintenance, and convenient cleaning and upkeep.


· Adopts a cantilever support structure and flip-type side panels for easy cleaning and maintenance.


· The conveyor belt is equipped with guide strips to prevent deviation and side-slip, ensuring safety, reliability, and durability.


Technical parameter
ModelPTX-6S
Dimension4120x1230x1420mm
Capacity2000kg/h
Weight440kg
Power1.1kW
  • ModelPTX-6S
  • Dimension4120x1230x1420mm
  • Capacity2000kg/h
  • Weight440kg
  • Power1.1kW
