Light Sorting Conveyor PTX-6D
PTX-6D
Details&Quality of the Equipment

LED Lighting

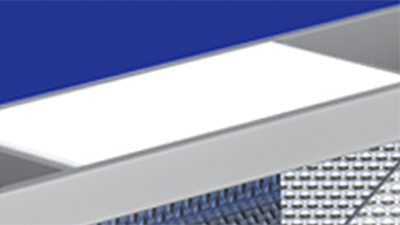

  • LED Lighting

    Features a fully sealed design with white acrylic panels and high-quality built-in LED beads, delivering uniform illumination with no dark spots. Adjustable brightness, energy-saving, environmentally friendly, and long-lasting.

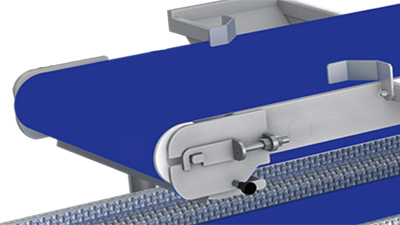

  • Raw Material Conveying

    Adopts a blue food-grade PU conveyor belt from the German brand Siegling, featuring anti-fraying, hydrolysis-resistant, and non-fading properties.

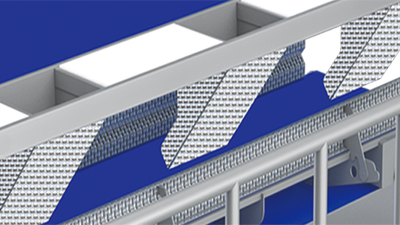

  • Sorting & Conveying

    Accurately transfers sorted and trimmed materials to the washing machine or vegetable cutter, ensuring efficient connection with subsequent processes.

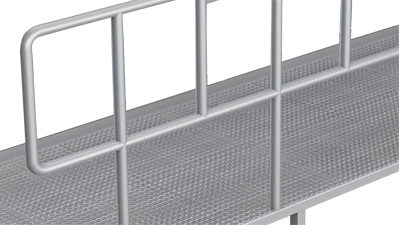

  • Safety Platform

    Made of stainless steel perforated plates, offering anti-slip, corrosion-resistant, high load-bearing capacity, and easy cleaning. Equipped with sturdy guardrails on both sides to enhance operational safety and stability.

Overview of the equipment

· Equipped with an SUS304 electric drive roller, ensuring reliable operation, easy maintenance, and simple cleaning and upkeep.


· Features a cantilever support structure with flip-type side panels for convenient cleaning and maintenance.


· The conveyor belt is fitted with guide strips to prevent misalignment and side slippage, ensuring safety, reliability, and long service life.


Technical parameter
ModelPTX-6D
Dimension4300x3000x1425mm
Capacity2000kg/h
Weight480kg
Power1.5kW
  • ModelPTX-6D
  • Dimension4300x3000x1425mm
  • Capacity2000kg/h
  • Weight480kg
  • Power1.5kW
