Bubble cleaning machine GQ-450
GQ-450
Details&Quality of the Equipment

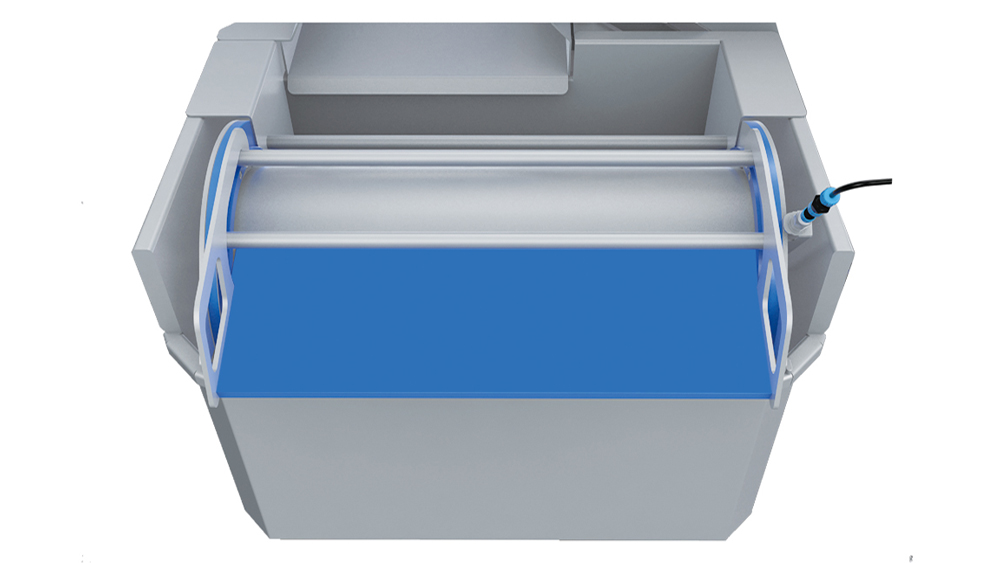

Lower Rotary Drum

  • Lower Rotary Drum

    Quick-release design with precision filtration system that accurately intercepts fine debris in water, enabling automatic separation and discharge for easy maintenance and superior cleaning performance.

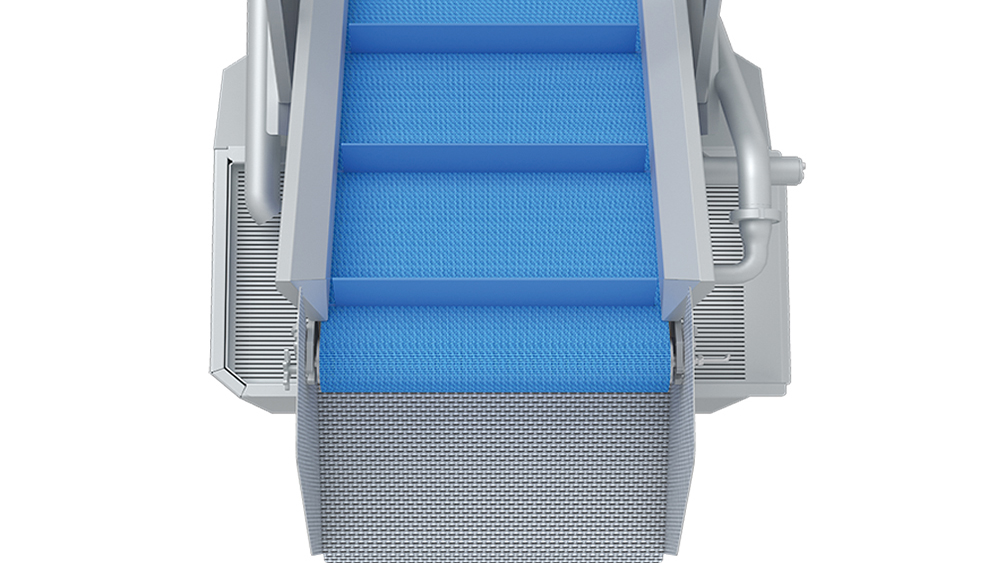

  • Conveyor Mesh Belt

    The conveyor mesh belt can effectively filter out impurities from vegetables and ensure no damage to the vegetables; the cleaned vegetables will be conveyed through the mesh belt and smoothly enter the next process.

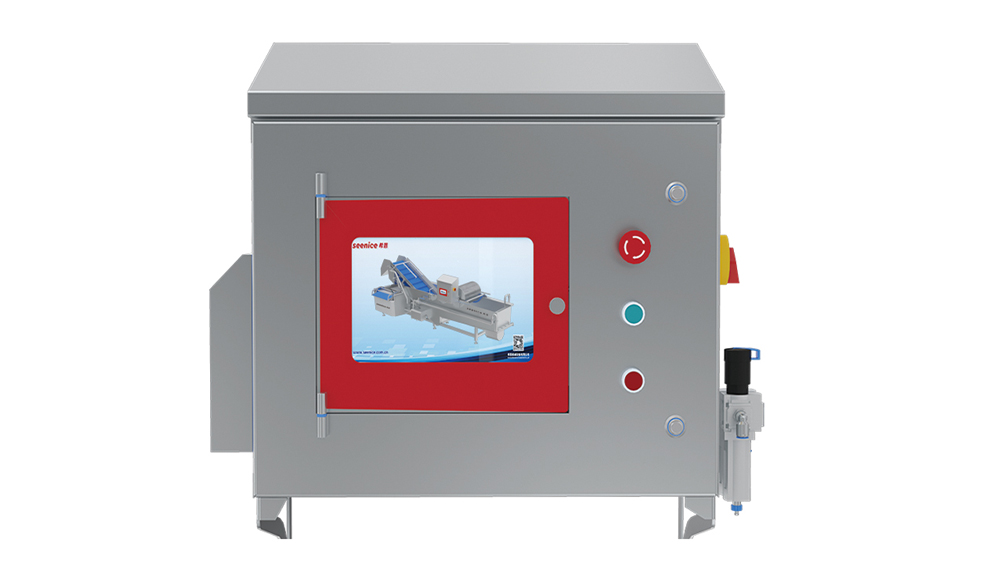

  • Control box

    Human machine exchange interface, PLC automatic control system, reserved RS485 communication interface or RJ45 network port, control box dustproof and waterproof level IP65.

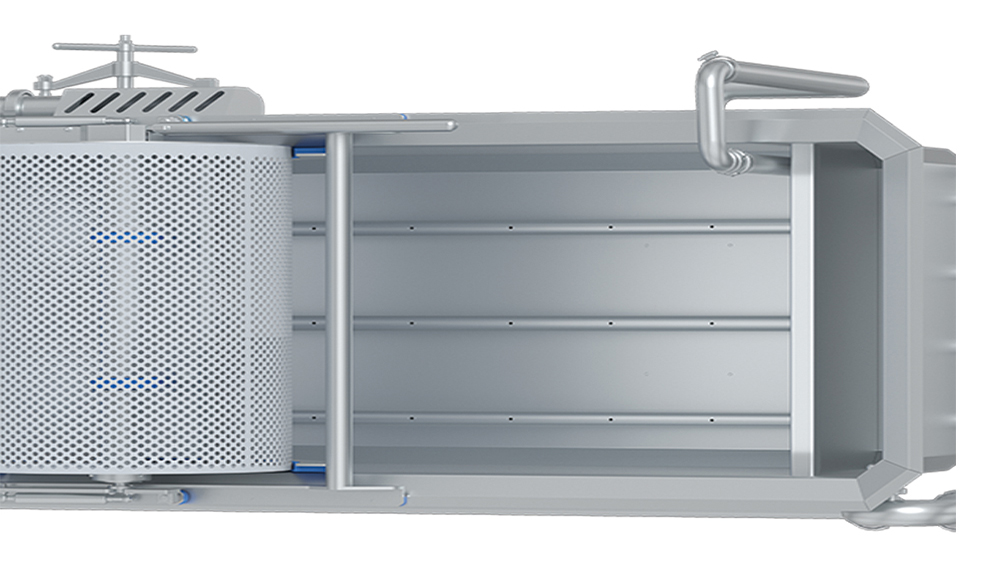

  • Box

    Streamlined hygienic design ensures sanitary washing conditions, with easy-clean surfaces and complete wastewater/debris elimination (zero dead zones).

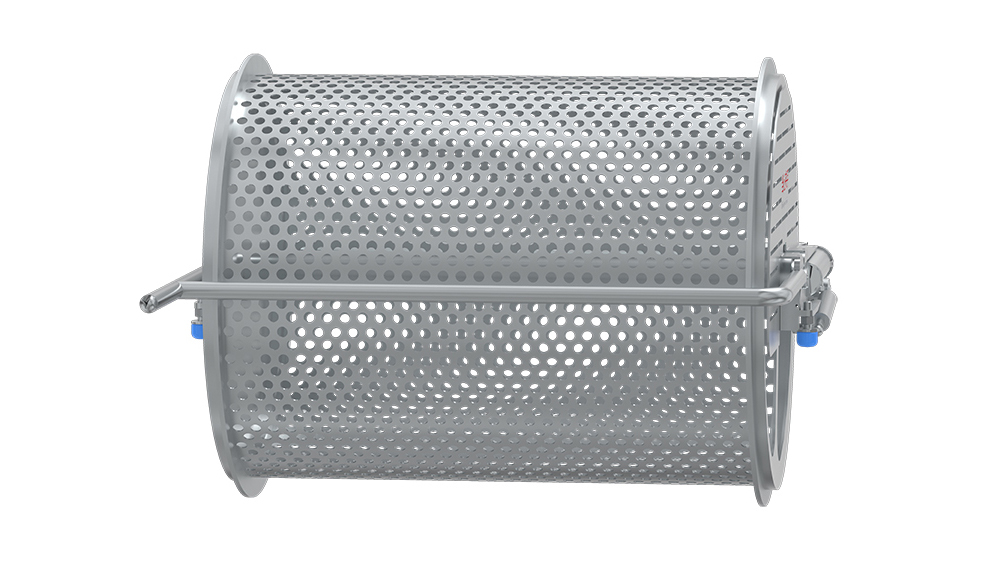

  • Upper Rotating Cage

    It can effectively filter out impurities, hair and other small floating objects, as well as the foam accumulated due to vegetable acid and vegetable juice. Different pore sizes can be selected for different vegetables.

Overview of the equipment

·  The equipment conveying adopts an embedded mesh belt lifting structure design.


· The box is equipped with an internal bubble pipeline, one end of which connected to a high-pressure fan.


· A spray pipe is installed at the outlet to perform a secondary cleaning of the material.


· The transmission uses a safe and 304 stainless steel drum motor.


· A bubble generation device is set up, continuously washing the material to accelerate the separation of material from impurities.


 · The auxiliary water tank is equipped with a screen that can filter out floating residues in the water.


·  It is equipped with a sewage valve, making the cleaning of sludge residue hassle-free.


· The conveyor belt adopts a quick-disassembly mode, ensuring no sanitary dead corners.

Technical parameter
ModelGQ-450
Dimension4290x1320x1700mm
Capacity1000kg/h
Water Capacity1141L
Conveyor Belt Width520mm
Weight530kg
Power7.96kW
  • ModelGQ-450
  • Dimension4290x1320x1700mm
  • Capacity1000kg/h
  • Water Capacity1141L
  • Conveyor Belt Width520mm
  • Weight530kg
  • Power7.96kW
