Bubble cleaning machine GQ-450S
GQ-450S
Details&Quality of the Equipment

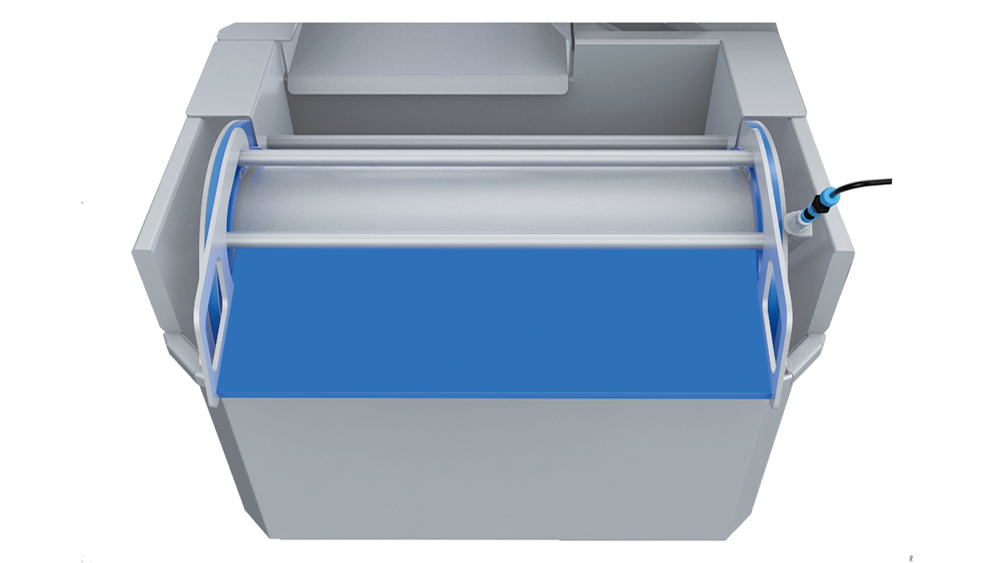

Intelligent Control Pressing Material

  • Intelligent Control Pressing Material

    The downward-pressing structure accurately presses floating materials into water, and the intelligent control system flexibly sets the cleaning and sterilization time to achieve refined processing.

  • Elevating Conveying

    The food-grade mesh belt features precision aperture design for efficient impurity filtration. Its flexible conveying structure ensures zero damage to vegetables during elevating and conveying, enabling precise connection to the next process.

  • Lower Rotary Drum

    Quick-release design with precision filtration system that accurately intercepts fine debris in water, enabling automatic separation and discharge for easy maintenance and superior cleaning performance.

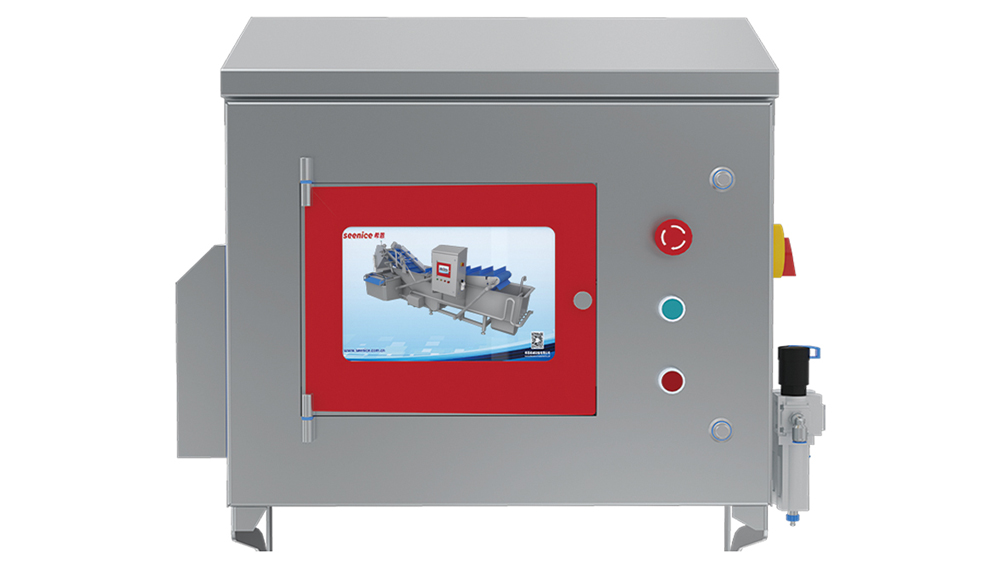

  • Control Box

    The cabinet is made of stainless steel, equipped with Siemens buttons and electrical components, with a dustproof and waterproof rating of IP65.

Overview of the equipment

· The equipment adopts an embedded mesh belt lifting structure for conveying.


· Built-in bubble pipelines are installed inside the tank, with one end connected to a high-pressure fan.


· A spray pipe is equipped at the discharge port for secondary cleaning of materials.


· The transmission adopts a safe and hygienic 304 stainless steel drum motor.


· A bubble generating device is provided to continuously flush materials and accelerate the separation of materials from impurities.


· The conveyor belt features a quick-release structure with no sanitary dead corners.


Technical parameter
ModelGQ-450S
Dimension4290×1425×1730mm
Capacity1000kg/h
Water Capacity1310L
Weight890kg
Power7.2kW
  • ModelGQ-450S
  • Dimension4290×1425×1730mm
  • Capacity1000kg/h
  • Water Capacity1310L
  • Weight890kg
  • Power7.2kW
