Bubble cleaning machine GQ-450G
GQ-450G
Details&Quality of the Equipment

Intelligent Control & Precise Cleaning

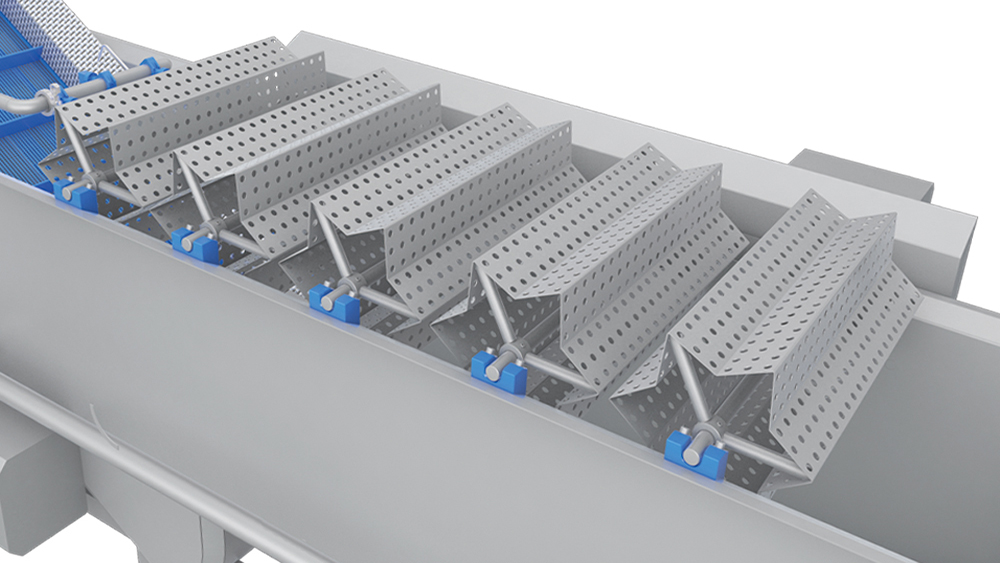

  • Intelligent Control & Precise Cleaning

    Adopting a push-down structure design, it can accurately press floating materials into water for thorough cleaning. With intelligent speed control, the cleaning and sterilization duration can be flexibly set, providing tailored and refined treatment solutions for various types of fruits and vegetables.

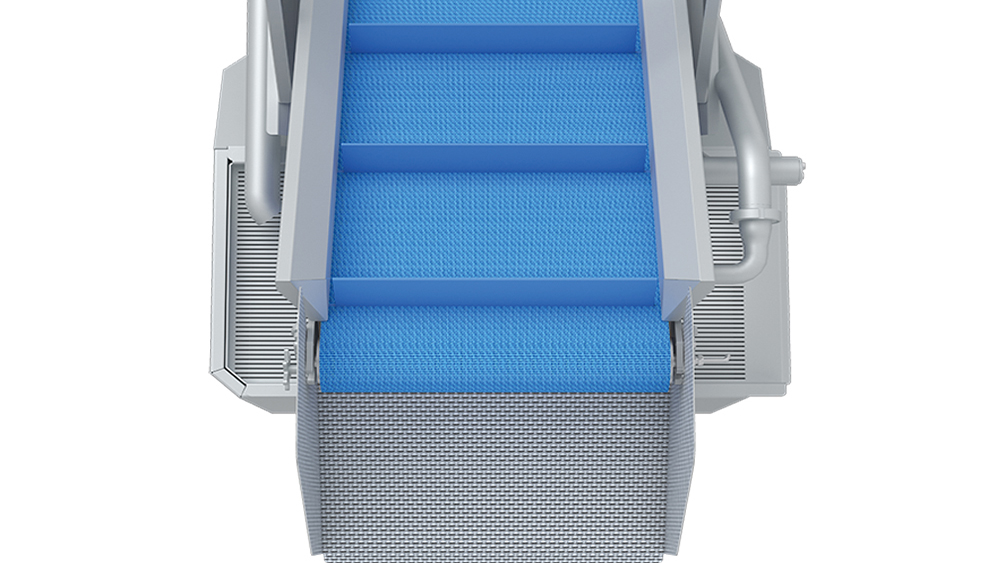

  • Elevating Conveying

    The food-grade mesh belt features precision aperture design for efficient impurity filtration. Its flexible conveying structure ensures zero damage to vegetables during elevating and conveying, enabling precise connection to the next process.

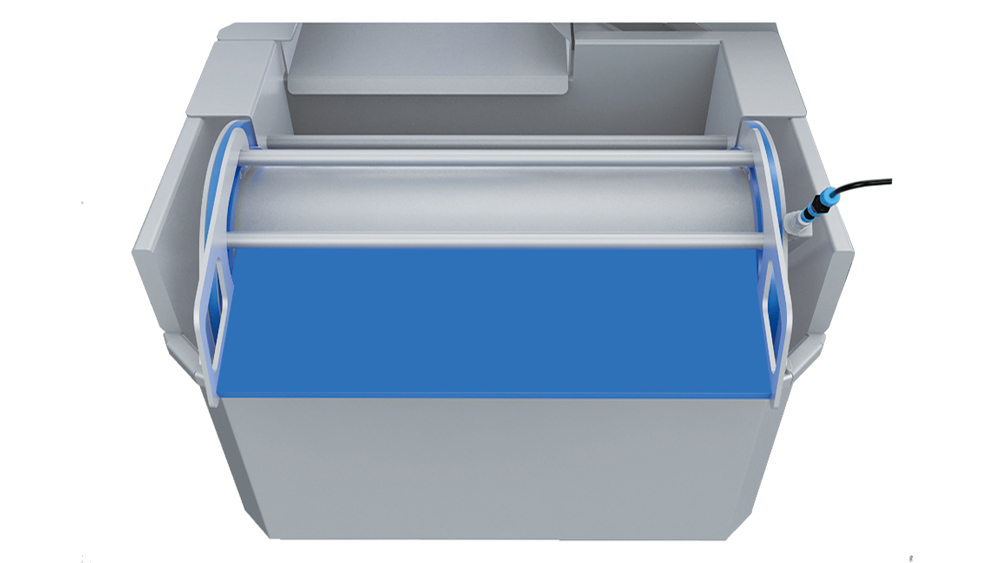

  • Lower Rotary Drum

    Quick-release design with precision filtration system that accurately intercepts fine debris in water, enabling automatic separation and discharge for easy maintenance and superior cleaning performance.

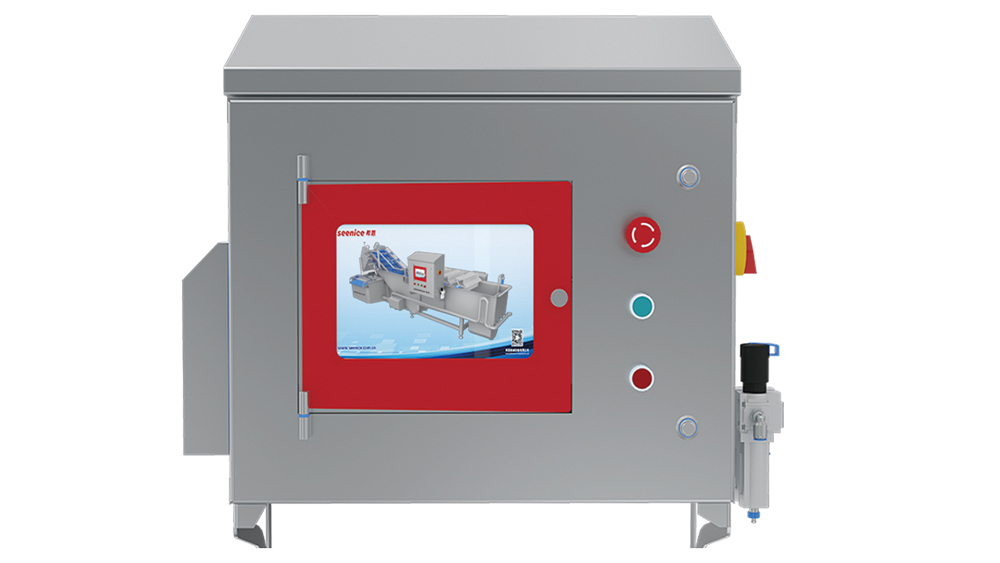

  • Control Box

    The cabinet is made of stainless steel, equipped with Siemens buttons and electrical components, with a dustproof and waterproof rating of IP65.

Overview of the equipment

· The equipment adopts an embedded mesh belt lifting structure for conveying.


· Built-in bubble pipelines are installed inside the tank, with one end connected to a high-pressure fan.


· A spray pipe is equipped at the discharge port for secondary cleaning of materials.


· The transmission adopts a safe and hygienic 304 stainless steel drum motor.


· A bubble generating device is provided to continuously flush materials and accelerate the separation of materials from impurities.


· The conveyor belt features a quick-release structure with no sanitary dead corners.


Technical parameter
Model GQ-450G
Dimension4290x1425x1730mm
Capacity1000kg/h
Water Capacity1310L
Weight450kg
Power5.1kW
  • Model GQ-450G
  • Dimension4290x1425x1730mm
  • Capacity1000kg/h
  • Water Capacity1310L
  • Weight450kg
  • Power5.1kW
