Bubble water flow cleaning machine SQ-500A

SQ-500A

Details&Quality of the Equipment

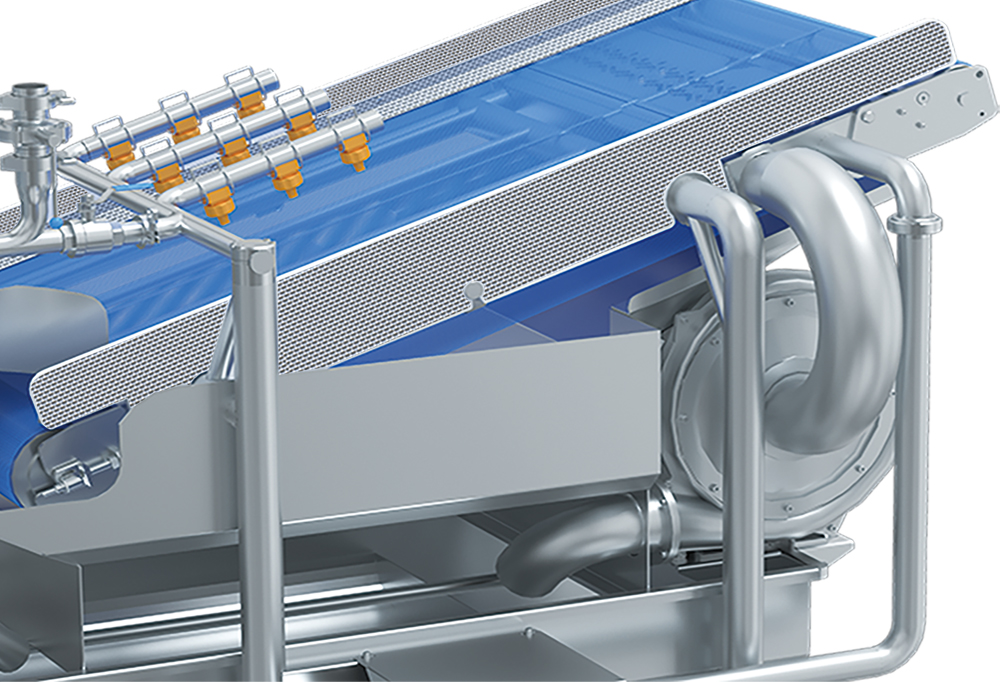

Suction knife

Suction knife
The suction knife effectively removes water from the conveyor belt and vegetable surface, reducing spin drying time and improving the quality of clean vegetables.

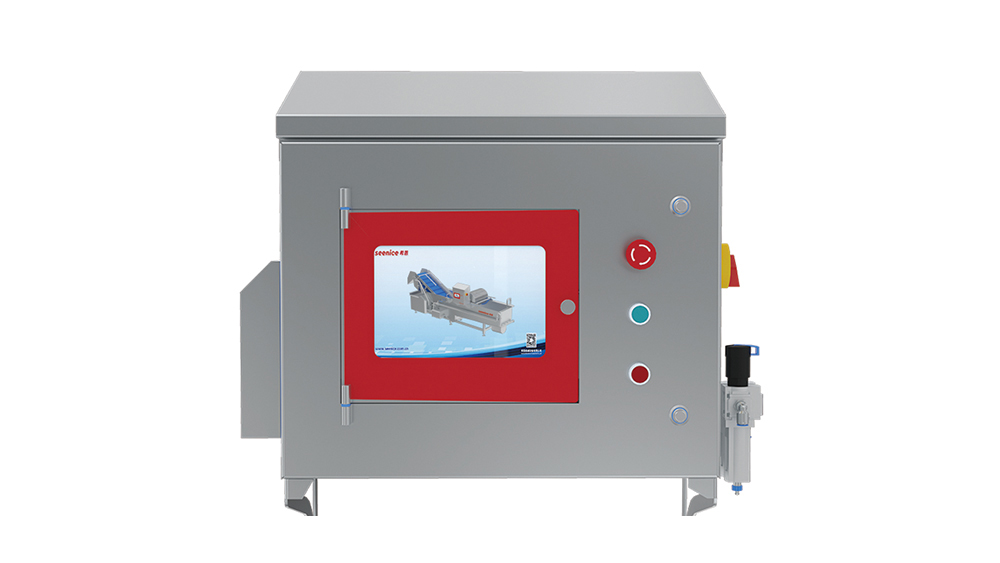

Control box
Human machine exchange interface, PLC automatic control system, reserved RS485 communication interface or RJ45 network port, control box dustproof and waterproof level IP65

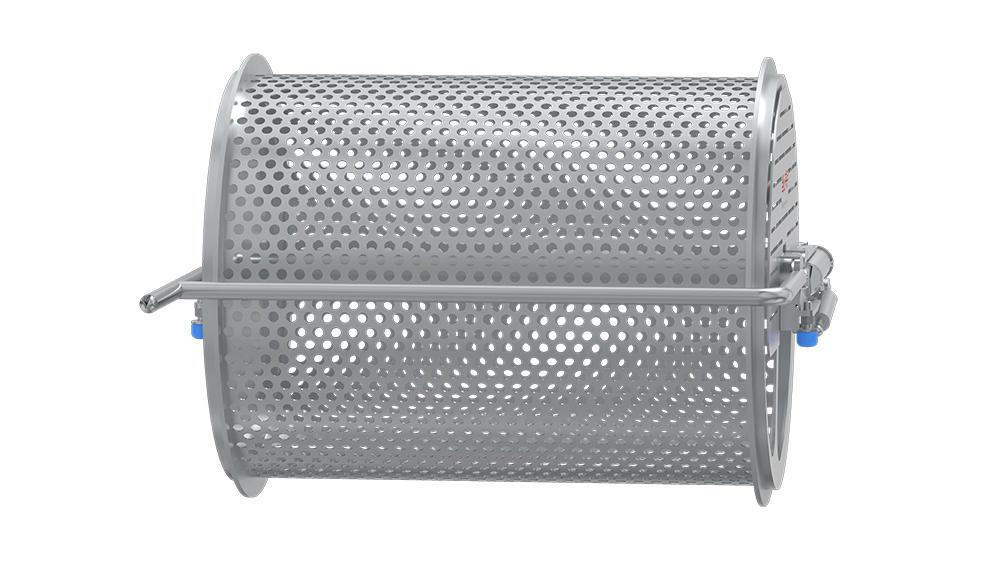

Rotating cage
It can effectively filter out impurities, hair, and other small floating objects, and filter out foam accumulated due to vegetable acid and vegetable juice. Different vegetables can choose different aperture sizes.
Drainage valve
By using pneumatic control valves, automatic drainage switches are achieved, which can automatically drain the water from cleaned vegetables, ensuring hygiene, efficiency, and speed.
Ice water replacement
By using an online ice water replacement system, the temperature can be controlled at 4-6 degrees Celsius, effectively maintaining the freshness and high quality of clean vegetables.
Automatic hydration
Configure the raw water purification pipeline. By using water level sensor devices and pneumatic control valves, automatic replenishment of water in the tank is achieved to maintain an appropriate water level and significantly reduce water consumption.

Overview of the equipment

· Using water flow agitation combined with bubbles to continuously clean materials gently, accelerating the separation of materials and debris, so that vegetables are not damaged during the entire cleaning process.

· The combination of human-computer interaction interface and PLC control equipment for automatic water injection, drainage, temperature control, disinfection and sterilization makes production easier.

· The mesh belt driven by electric rollers is used for conveying and discharging materials, and the suction knife and blowing knife separate the materials from the mesh belt without damaging the materials during the entire process.

· The upper rotating cage can effectively filter out impurities, insect eggs, hair, small floating objects, and overflow foam accumulated due to vegetable acid and vegetable juice.

· The overflow system integrates functions such as overflow transition tank, automatic overflow, maintaining water level, updating water source, and centralized discharge of wastewater, ensuring consistent clean and environmentally friendly water circulation in the tank.

Technical parameter
