Water flow cleaning machine SQ-400B
SQ-400B
Details&Quality of the Equipment

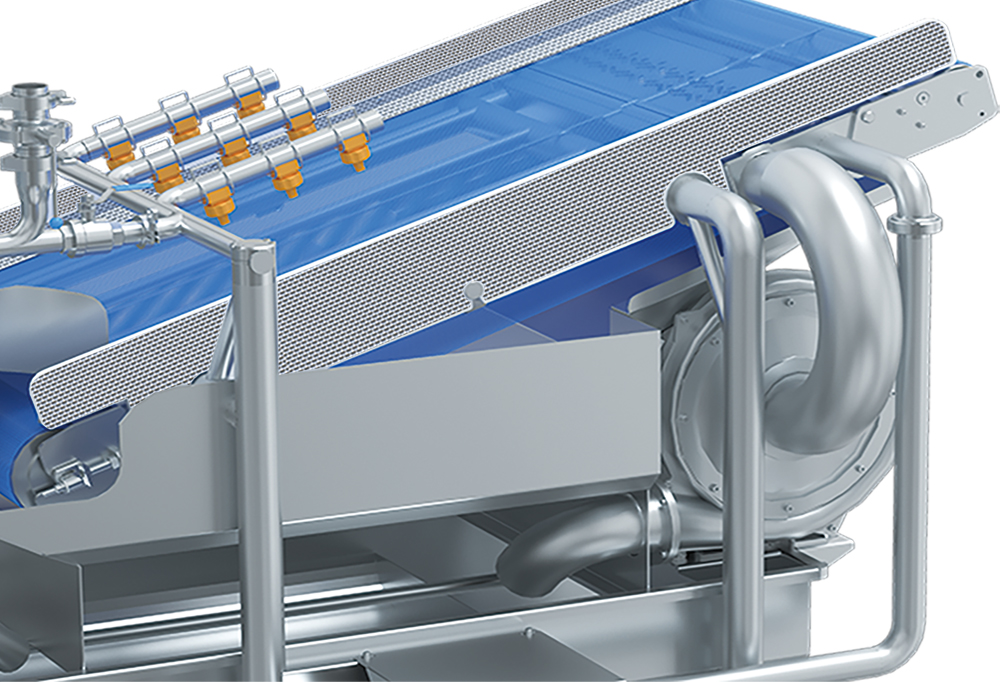

Suction knife

  • Suction knife

    The suction knife effectively removes water from the conveyor belt and vegetable surface, reducing spin drying time and improving the quality of clean vegetables.

  • Rotating cage

    It can effectively filter out impurities, hair, and other small floating objects, and filter out foam accumulated due to vegetable acid and vegetable juice. Different vegetables can choose different aperture sizes.

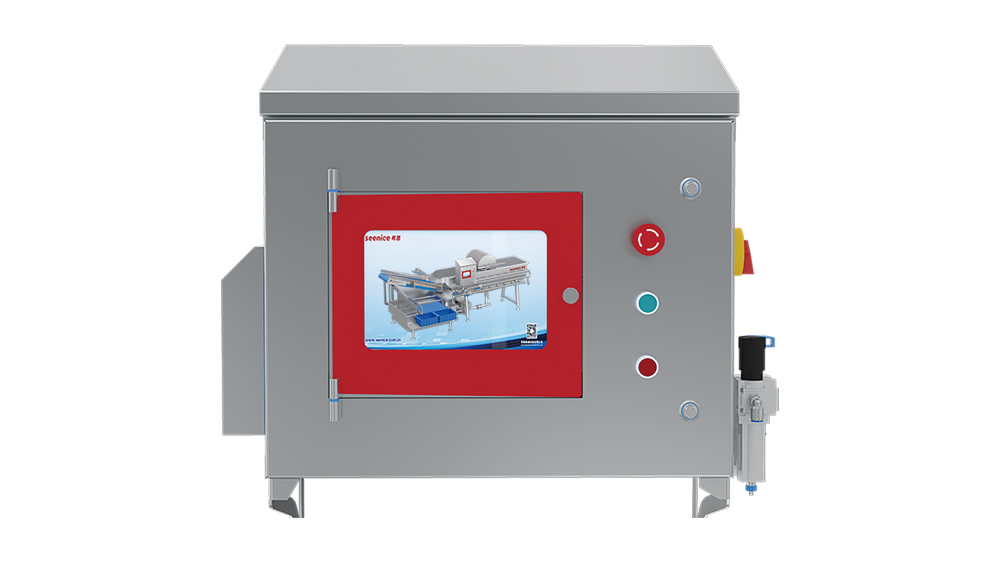

  • Control box

    The box adopts wire drawing technology and is equipped with Siemens button control electrical components, with a dustproof and waterproof rating of IP65.

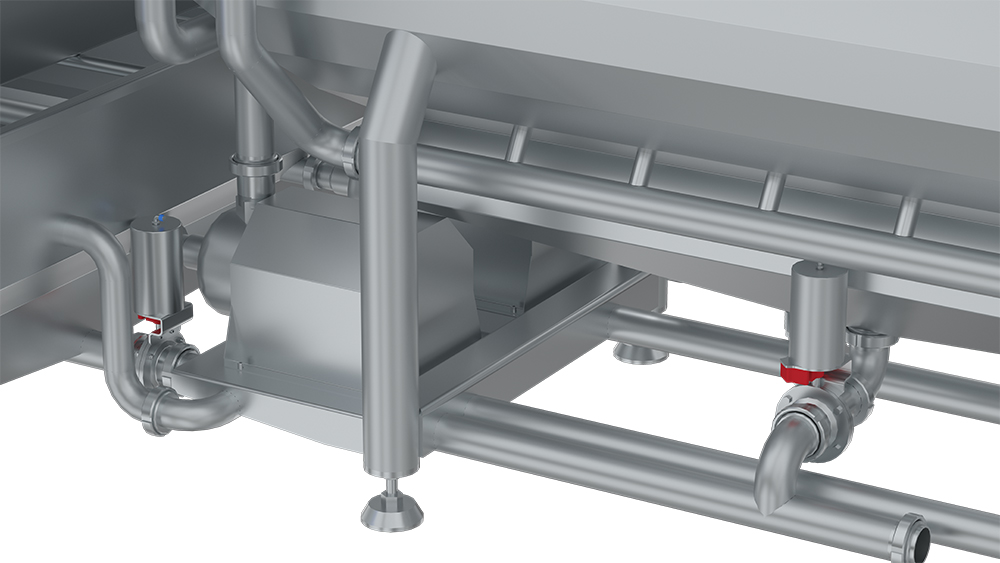

  • Drainage valve

    By using pneumatic control valves, automatic drainage switches are achieved, which can automatically drain the water from cleaned vegetables, ensuring hygiene, efficiency, and speed.

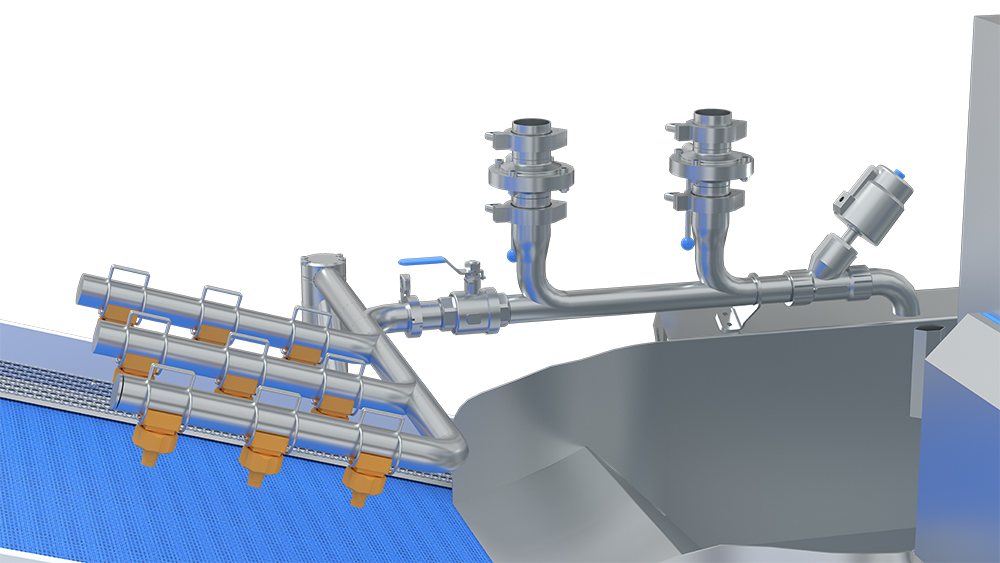

  • Automatic hydration

    Configure the raw water purification pipeline. By using water level sensor devices and pneumatic control valves, automatic replenishment of water in the tank is achieved to maintain an appropriate water level and significantly reduce water consumption.

Overview of the equipment

· The natural mechanics principle of using water flow to agitate and rinse vegetables ensures that they are not damaged throughout the entire washing process.


· The inlet and both sides of the tank are equipped with spray pipes, which are supplied with water by a high-pressure water pump. Under the action of the spray water in the spray pipe, the water inside the tank is rotated and pushed forward by the water flow, completing the cleaning process.


· The quick detachable mesh conveyor belt is conveyed by a 304 stainless steel electric drum, and the water flows into the bottom water tank through the mesh holes to complete the circulation of the entire waterway.

Technical parameter
ModelSQ-400B
Dimension4340x2030x1790mm
Capacity1000kg/h
Water Capacity1190L
Weight660kg
Power6.13kW
  • ModelSQ-400B
  • Dimension4340x2030x1790mm
  • Capacity1000kg/h
  • Water Capacity1190L
  • Weight660kg
  • Power6.13kW
